Factory Supply Industrial Vacuum Pump Inlet Air Filter Barrel Bucket for Blower
Brand Liongoal
Product origin China
Delivery time 3 days
Supply capacity 300 pcs/day
Features:
1. Consist of a steel housing and a lid with quick locking clips
2. Rugged all steel construction for heavy duty applications
3. Sealing with O-ring and max vacuum is below 1 Pa
4. Large dirt holding capacity and easy cleaning. Easy to replace cartridge
5. Equipped with paper cartridge, up to 99% efficiency
Factory Supply Industrial Vacuum Pump Inlet Air Filter Barrel Bucket for Blower

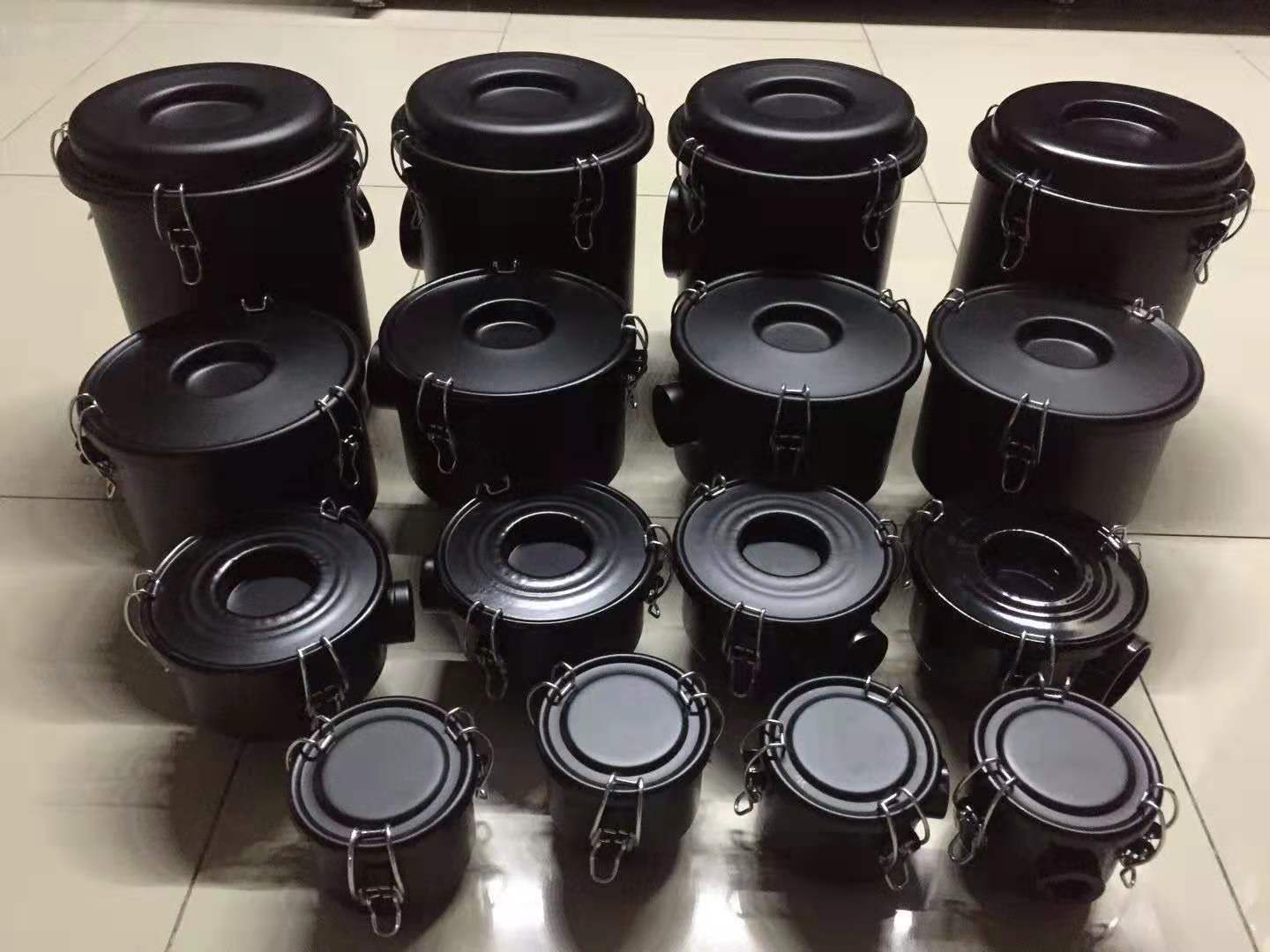

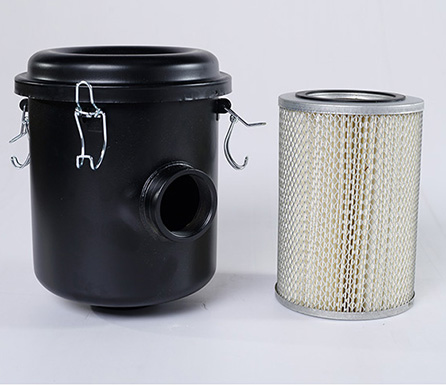

Vacuum Pump Inlet Air Filter Bucket
Be widely used in industrial use vacuum systems.
Effectively prevent solids or dusts from being sucked into the vacuum pump or system.
Reducing pump wear and improving pump operation reliability.
Effectively protect the components in vacuum system, such as vacuum valves and vacuum gauges etc.
Features:
1. Consist of a steel housing and a lid with quick locking clips
2. Rugged all steel construction for heavy duty applications
3. Sealing with O-ring and max vacuum is below 1 Pa
4. Large dirt holding capacity and easy cleaning. Easy to replace cartridge
5. Equipped with paper cartridge, up to 99% efficiency

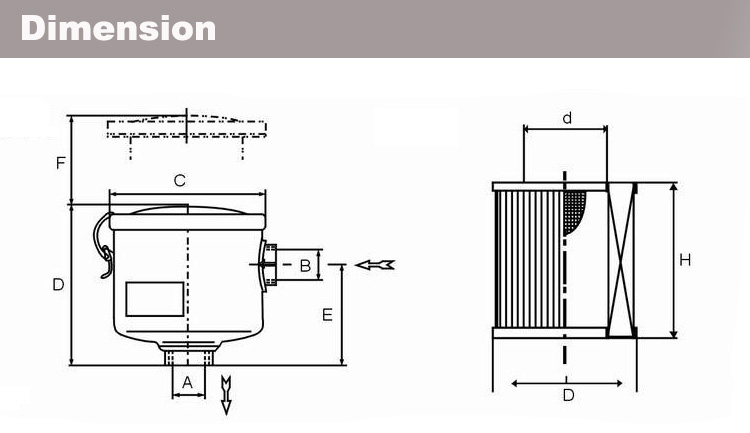

Model Number | F002 | F002-1 | F004 | F003 | F003-1 | F006 | F006-1 | F007 | F008 |
Rated flow (m³/h) | 32 | 42 | 100 | 120 | 150 | 300 | 360 | 360 | 800 |
*A (inch) | G1/2'' | G3/4'' | G1 1/4'' | G1 1/4'' | G1 1/2'' | G2'' | G2 1/2'' | G3' | G4'' |
*B (inch) | G1/2'' | G3/4'' | G1 1/4'' | G1 1/4'' | G1 1/2'' | G2'' | G2 1/2'' | G3'' | G4'' |
C (mm) | φ101 | φ101 | φ146 | φ185 | φ185 | φ222 | φ222 | φ222 | φ350 |
D(mm) | 90 | 90 | 110 | 170 | 170 | 258 | 258 | 258 | 370 |
E(mm) | 53 | 53 | 70 | 115 | 115 | 125 | 125 | 125 | 135 |
F(mm) | 70 | 70 | 75 | 130 | 130 | 240 | 240 | 240 | 170 |
Weight(kg) | 1 | 1 | 1.4 | 2.3 | 2.3 | 6.9 | 6.9 | 6.9 | 15 |
Remark: size A, B are pipe thread G. | |||||||||
Filtering supplies | FE002 | FE002 | FE004 | FE003 | FE003 | FE006 | FE006 | FE007 | FE008 |
D(mm) | φ65 | φ65 | φ98 | φ128 | φ128 | φ150 | φ150 | φ150 | φ270 |
d(mm) | φ38 | φ38 | φ60 | φ64 | φ64 | φ88 | φ88 | φ88 | φ170 |
H(mm) | 69 | 69 | 70 | 125 | 125 | 222 | 222 | 222 | 365 |
Q1: What's the shipping/freight cost?
A1: It depends on the quantities and shipping methods, please contact us for accurate quotation.
Q2: What's the leading time?
A2: It takes 7 working days for those in stock, and takes 10-15 working days for those out of stock.
Q3: Can you produce special voltage ring blowers? such as 110V and 400V etc
A3: Yes, we can. Please contact us freely for more details.
Q4: How to choose the model?
A4: You need to tell us Air flow, operating pressure, operating mode(vacuum or pressure), motor voltage and frequency, and then we'll choose you the right one.
Q5: How to operate the blower?
A5: Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do
according to your voltage, so at first , you need to tell us your voltage and phase,its important.
according to your voltage, so at first , you need to tell us your voltage and phase,its important.
Q6: What is the material of your machine , is it oil free?
A6: Our machine is aluminum alloy, motor is 100% copper coil. of course, it's oil free.
