High Overload Weighing Scale Sensor Belt Scale Compression Module
Brand SOP
Product origin China
Delivery time 3 days
Supply capacity 300 pcs/day

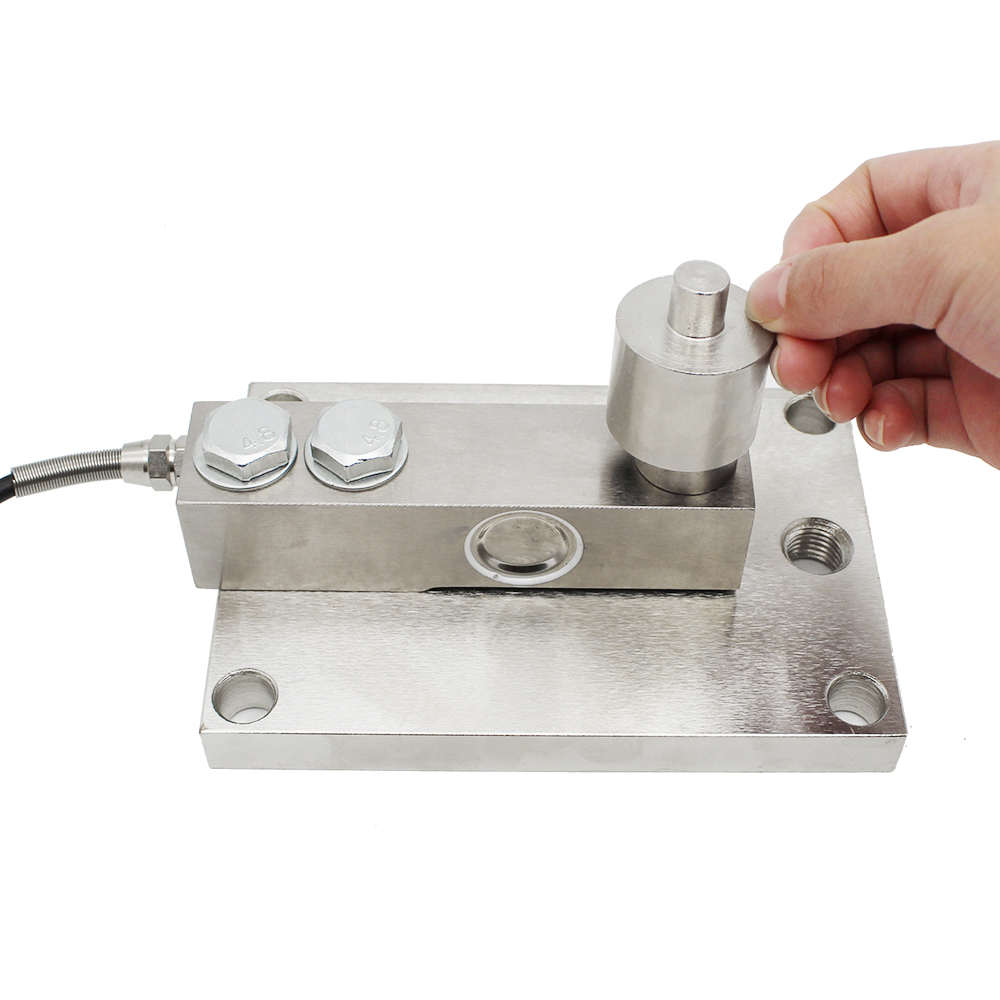

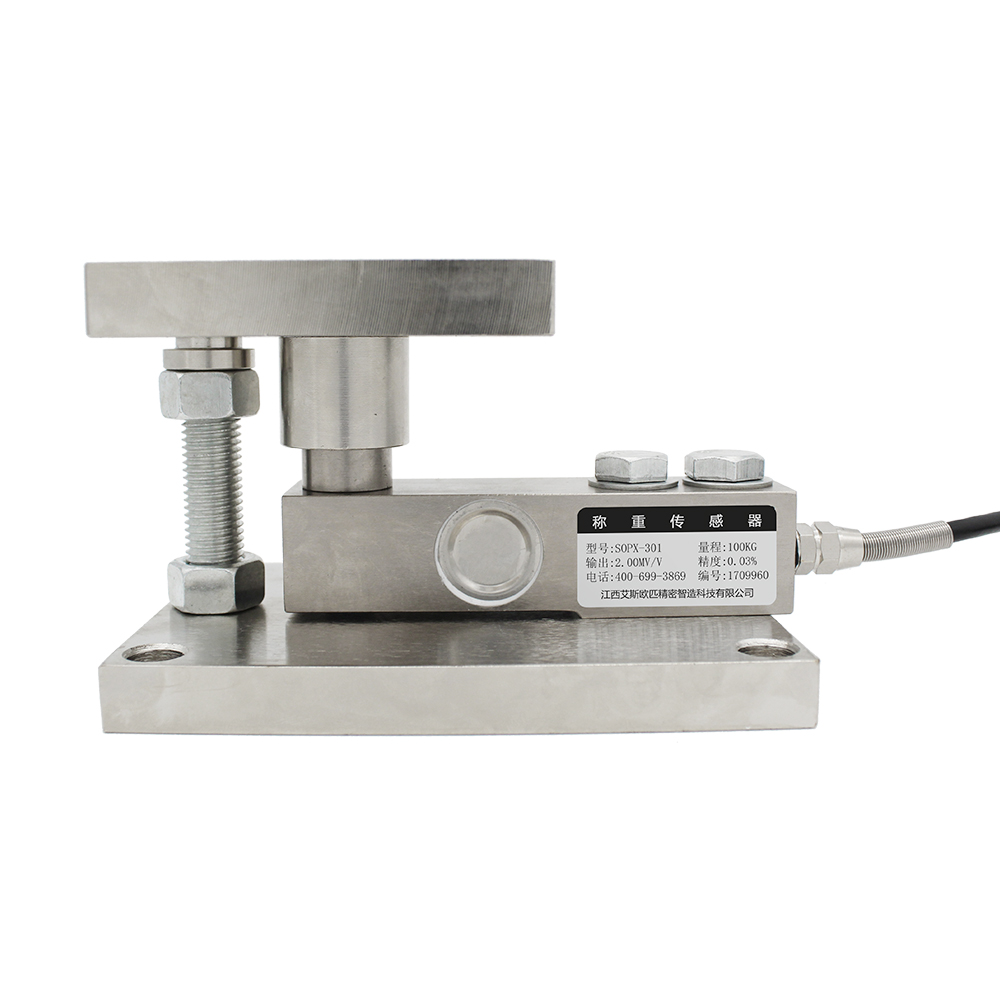

The silo weighing system is the ideal solution to weigh silos and tanks outside. The modules consist of a shear beam loadcell, mounting plates and an integrated anti-lift-off protection.
High Overload Weighing Scale Sensor Belt Scale Compression Module
Product Description：
Specification
Product Name | Compression weigh module |
Sensitivity | 2.0±10%mV/V |
Capacity | 0-15T |
Non-linearity | 0.1%F.S. |
Hysteresis | 0.1%F.S. |
Repeatability | 0.1%F.S. |
Creep(30min) | 0.05%F.S. |
Temp Effect Output | 0.05%F.S./10 ℃ |
Temp Effect Zero | 0.05%F.S./10 ℃ |
Recommended Excitation Voltage | 5V~10V |
Material | Alloy Steel |
Warranty | 1year |
Insulation Resistance | ≥5000mΩ(100VDC) |
Safety Overload | 120%F·S |
Maxiumum Overload | 150% |
Operating Temp Range | -20~80℃ |
Cable ultimate pull | Φ5*3m |
Transport Package | Safety Carton Box |
Delivery Time | 3-7days |
Industry Applications
Packing & Delivery
Weighing Module Tank/ Hopper Load Cell 300KG 500KG 1000KG 2000KG
♦ Packing:
1* Weighing Modules
packing materials are eco-friendly and really protect your product well. Each item has its own independent foam/sponge/plastic bag packaging, then packed in a carton
♦ Delivery:
A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping

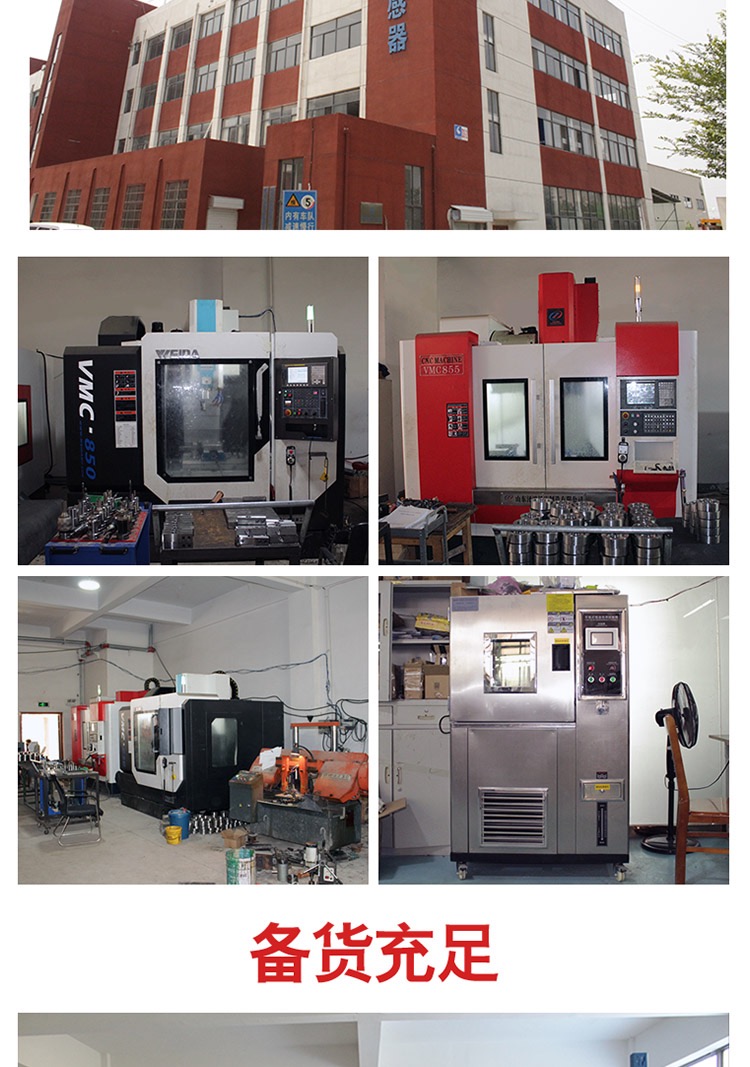

Company Profile
FAQ：
1. What is the MOQ?
If we don’t have it in stock, the MOQ is different according different models.
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don’t have it in stock, the lead time will be 10-30 days normally.
3. What is the payment terms?
T/T, Western Union,Escrow alibaba is acceptable.Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won’t be released until you get the goods. If we don’t make the shipment, you still can take back your money.
4. What is the express delivery？
DHL, Fedex, TNT ,EMS, UPS etc.We will choose the safe and cheapest way for you to reduce your cost.Economic shipping way: by sea, by air transport .If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. Can you design and customize products for me?
Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.
6. How long is your warranty period?
Our warranty period is 12 months.
