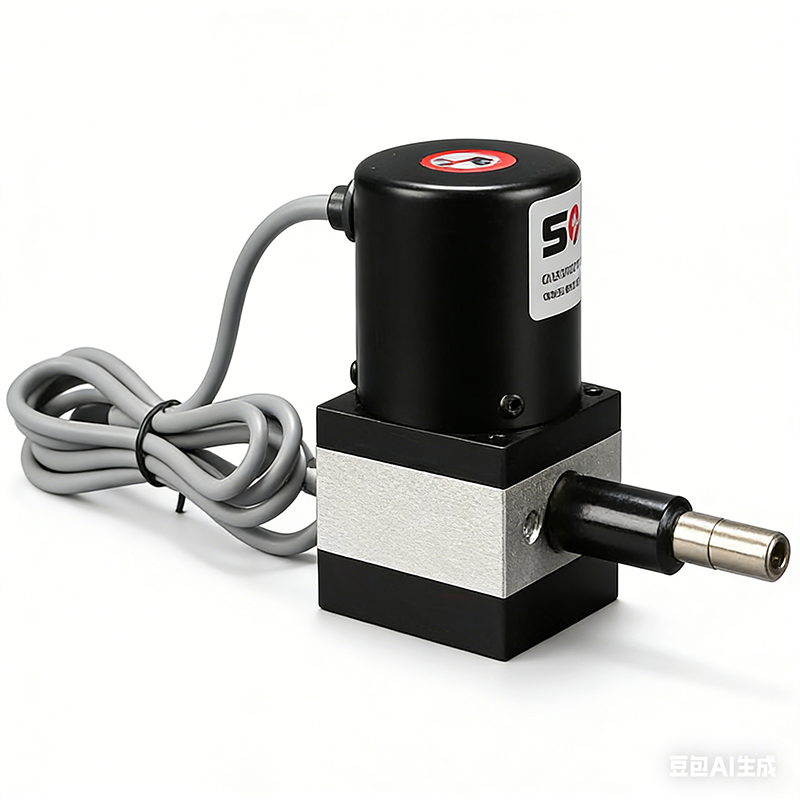

High precision Customizable 5000mm Length Measurement Spring Return Wire Rope Displacement Sensor
Brand SOP
Product origin Made in China
Delivery time 3days
Supply capacity 300pcs Per Day
1. Measurement range：0-5000mm
2. Output Signal: Analog encoder, 4-20mA, Digital communication
3. Linearity : 0.05%
4. IP Degree: IP67
5. Shell Material: Aluminum alloy/metal
New Design 0-5000mm Length Measurement Pull Rope Position Displacement Sensor
SOP pulling rod type linear position sensors with conductive plastic element are designed for the displacement or length measurement and are available in different stroke lengths up to 5000mm. The potentiometer displacement sensors give infinite resolution with repeatability of 0.01mm and outstanding linearity of 0.05%F.S. maximum.
1. 0-5000mm travel can be customized
2. Strong stability and high precision
3. Protection grade IP67
Product display
Product Details
Product parameters
| Product Model | WPS-T-RS485 |
| Output Signal | Analog encoder, 4-20mA, Digital communication |
| Linearity | 0.05% |
| Measuring Stroke | 0-5000mm |
| Wire Rope Diameter | 0.5(5m range), 0.6 (other range) ,0.7(3m range) |
| Shell Material | Aluminum alloy/metal |
| IP Degree | IP67 |
Product Size
Industrial Applications
Buyer feedback
Product packaging and transportation
Company Profile
FAQ
